At OHRA we believe that cantilever racking is the ideal storage system for our timber trade customers. We know this because we invented and perfected height-adjustable cantilever arms that are the standard for all carpentry storage.
OHRA cantilever racking gives you maximum timber storage capacity on a small footprint thanks to the sturdy but slim hot-rolled steel profile construction.
All our racking is made to order to fit your timber warehouse and precise product storage requirements.

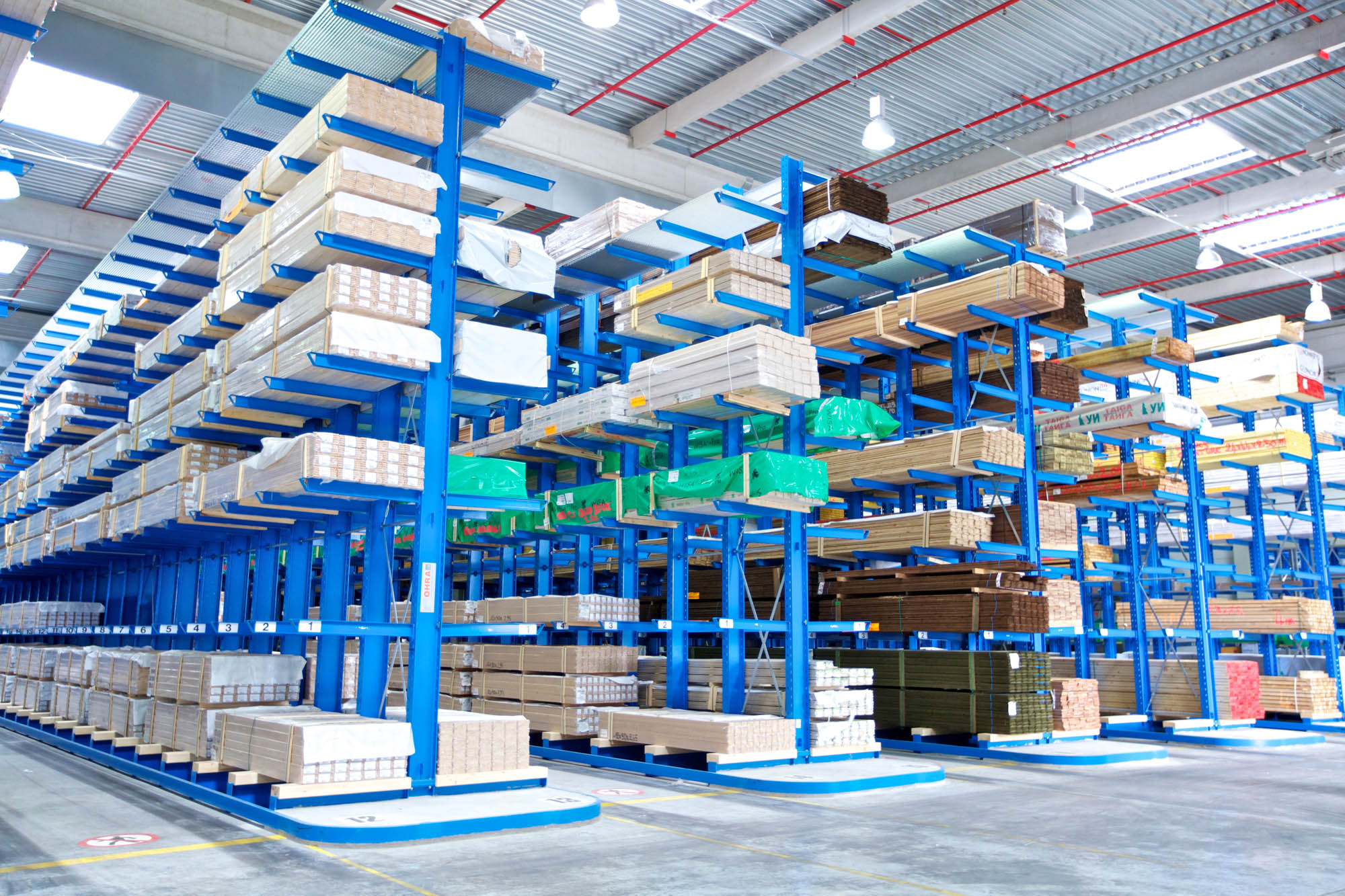

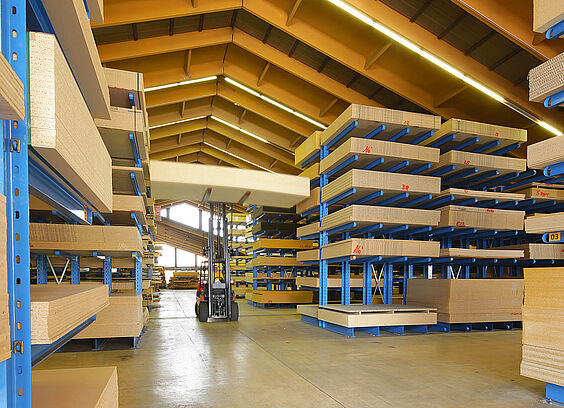

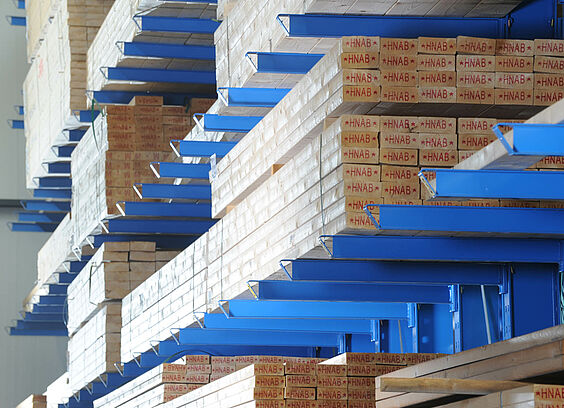

Cantilever racks
If you need a storage system for long, heavy or bulky composite panels, such as chipboards, sawn timber packages or solid wood, an OHRA cantilever racking system should be your first choice.
The cantilever racking column, bases and arms are constructed from robust, hot-rolled steel profiles to allow for the safe storage of your goods. Our cantilever arm racks feature a patented boltless slot-in assembly that ensures arms can be repositioned in seconds. They have a 20-degree incline and a load-bearing capacity of up to 800kg per arm, making it easy to store long materials gathered by forklift or crane with no impact damage. OHRA cantilever racking can be placed inside or outside.
OHRA cantilever racking advantages:
- Racking uprights and cantilever arms made of solid, hot-rolled IPE steel sections
- Robust, hooked-in inclined arms avoid damage to the racking and more importantly your stock
- Rack columns punched every 100mm on both sides
- We only use solid profiles - so no hidden cavities where rusting can start
- Can be fitted with roof, rear wall and gutter for external use
- High-quality powder coating
- Hot-dip galvanised design for outdoor storage
- All cantilever racking custom manufactured to match the stored goods and be delivered and assembled on request

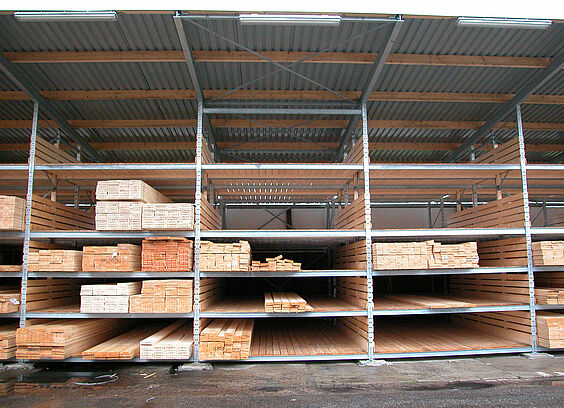

Pallet racks
Our pallet racks are constructed with durability in mind. They are made from hot-rolled steel profiles instead of thin sheet metal, ensuring they are efficient even when bearing heavy loads, and are safe enough to be used in the warehouse or customer-facing areas.
At the same time, pallet racking is an economical option because of the larger bay widths. This means they require fewer components than conventional rack systems with a lower load capacity.
OHRA pallet racking advantages:
- The low-cost, flexible storage solution
- Max bay load: 32,000kg
- Max beam load: 5,100kg
- Standard beam width up to 4,500mm
- Available with roof, wall or as complete rack clad building
Vertical racks
For upright storage of chipboard panels directly into the cutting area, there is no better alternative than our robust vertical rack system. We can design vertical racks of different sizes for use directly in your timber warehouse or showroom, and with different designs, colours and dimensions.
For easy entry and exit of the products, high-quality roller conveyors are mounted in front of each rack stack. Racks can be subdivided by separating brackets, or optional separating arms for fast and direct access to the product.
Automated racking storage system
An automated racking system - either with partial or fully automated loading and unloading - gives you the ultimate in storage optimisation: speed, dynamics, safety, energy and cost savings.
Depending on your requirements, whole packages or single panels can be taken and transported to the transfer station, using the 'goods-to-man' principle.
OHRA automated racking advantages:
- Highest possible handling turnover for picking orders
- Choose from manual or fully automatic control, and change at any time
- Storage and retrieval vehicle can serve several lanes using automatic cornering technique
- Interface with customer ERP software via a module
- Reduced investment costs and optimal price-performance ratio
Timber trade customer case studies
Gerbrich
The Czech door manufacturer Gerbrich was able to create high storage capacities in a small area for its production by using cantilever racks from OHRA. The racking system also enables efficient storage processes due to the fast handling of the goods and the good overview of the stock and thus a reliable supply to the production with the required materials such as chipboard or panelling.
van Deuveren
Increasingly, companies are using the option of individual colouring for their racks. In this way, a corporate design can also be continued inside a warehouse or different storage areas can be visually separated. OHRA, the European market leader for cantilever racking, powder-coated the racking in various RAL colours for the new headquarters of "Houthandel van Deuveren" in Dedemsvaart, the Netherlands. The colours are matched to the façade so that the racks and building form a harmonious unit that reflects the modernity and quality of the company's services.
Trend Hout
Trendhout, the Dutch specialist for exclusive garden buildings, has equipped its new logistics centre in Hattemerbroek with racking systems from OHRA. The focus of the system layout was to create as much storage capacity as possible on the available space. In just two weeks, OHRA installed a steel volume equivalent to six fully loaded trucks - resulting in a racking system with 390 meters of cantilever racking and storage space for 1,422 pallets. As a result, Trendhout has been able to significantly improve the efficiency and time required for order picking, stock levels are now organized and clear, and delivery reliability has increased.
Maderas Besteiro
At Maderas Besteiro, OHRA cantilever racking enables the efficient storage of timbers with a length of up to 13.5 metres; individually adapted pallet racking with up to 15 storage levels also offers plenty of space for the large variety of High Pressure Laminates (HPL). Compared to the original floor storage and outdated racking, Maderas Besteiro was able to increase its storage capacity by 20 per cent in the same storage space, speed up storage and retrieval processes by 30 per cent and reduce damage to stored goods by 70 per cent.
Bati Nature
Bati-Nature, the French carpentry / timber frame construction company / specialised in the construction of straw-insulated houses, has created new capacities for the storage of both wood-based materials and prefabricated wall elements with a special racking system from OHRA. Here, two 24-metre-long rows of single-sided cantilever racks form the walls of a hall-like construction. Between them remains a space of about 6 metres width that can be travelled on, in which the timber frame walls are stored upright. The cantilever columns support a roof that protects both the outward-facing storage levels formed by the cantilever arms from the weather and the floor storage zone between the racks. OHRA needed only about one and a half weeks for the assembly of the specially adapted warehouse building.
